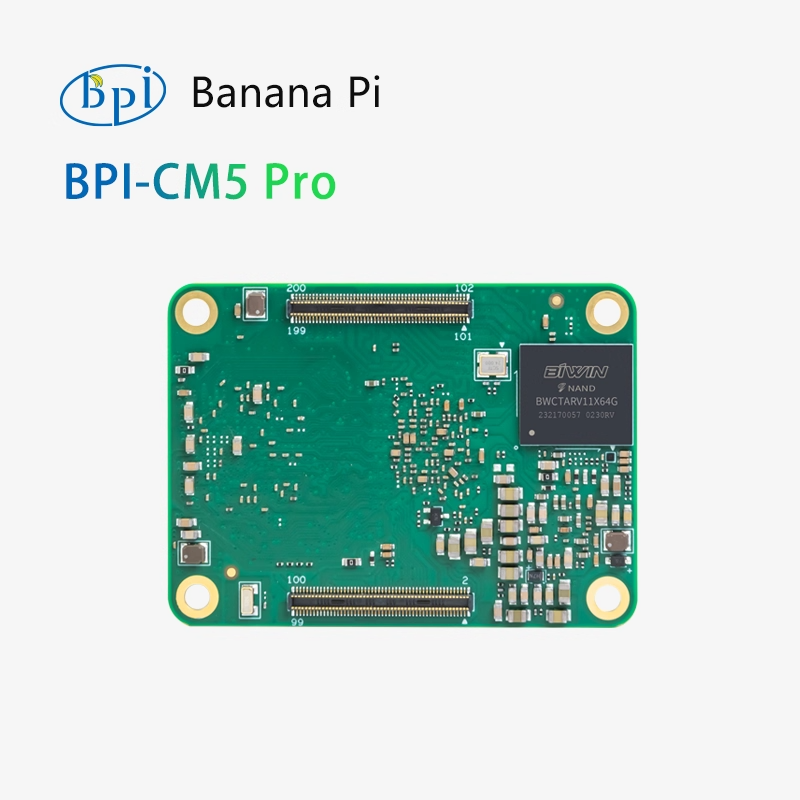

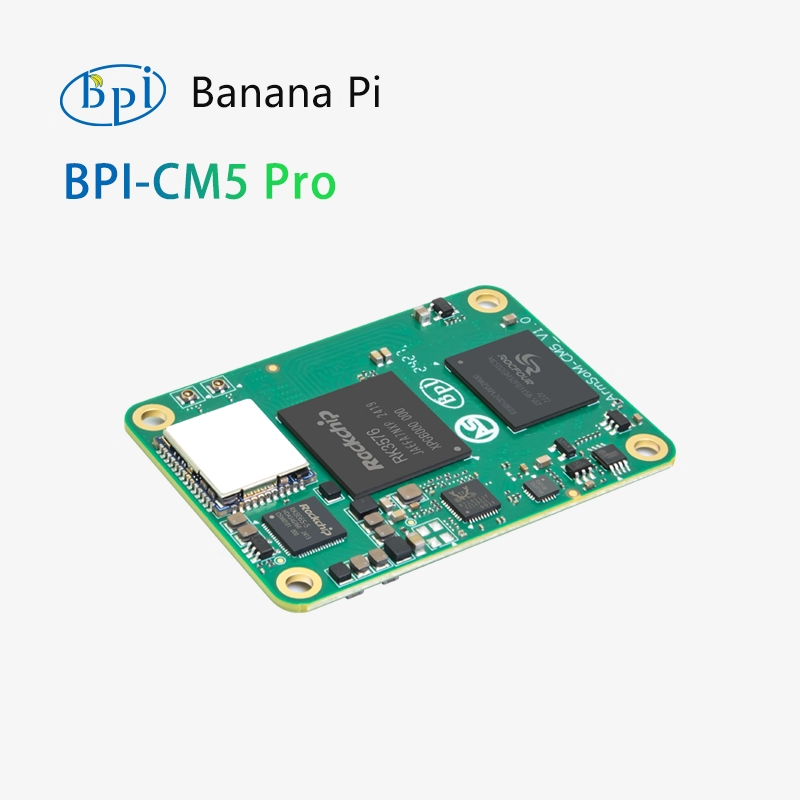

Banana Pi BPI-CM5 PRO IO core board Rockchip RK3576 chip solution

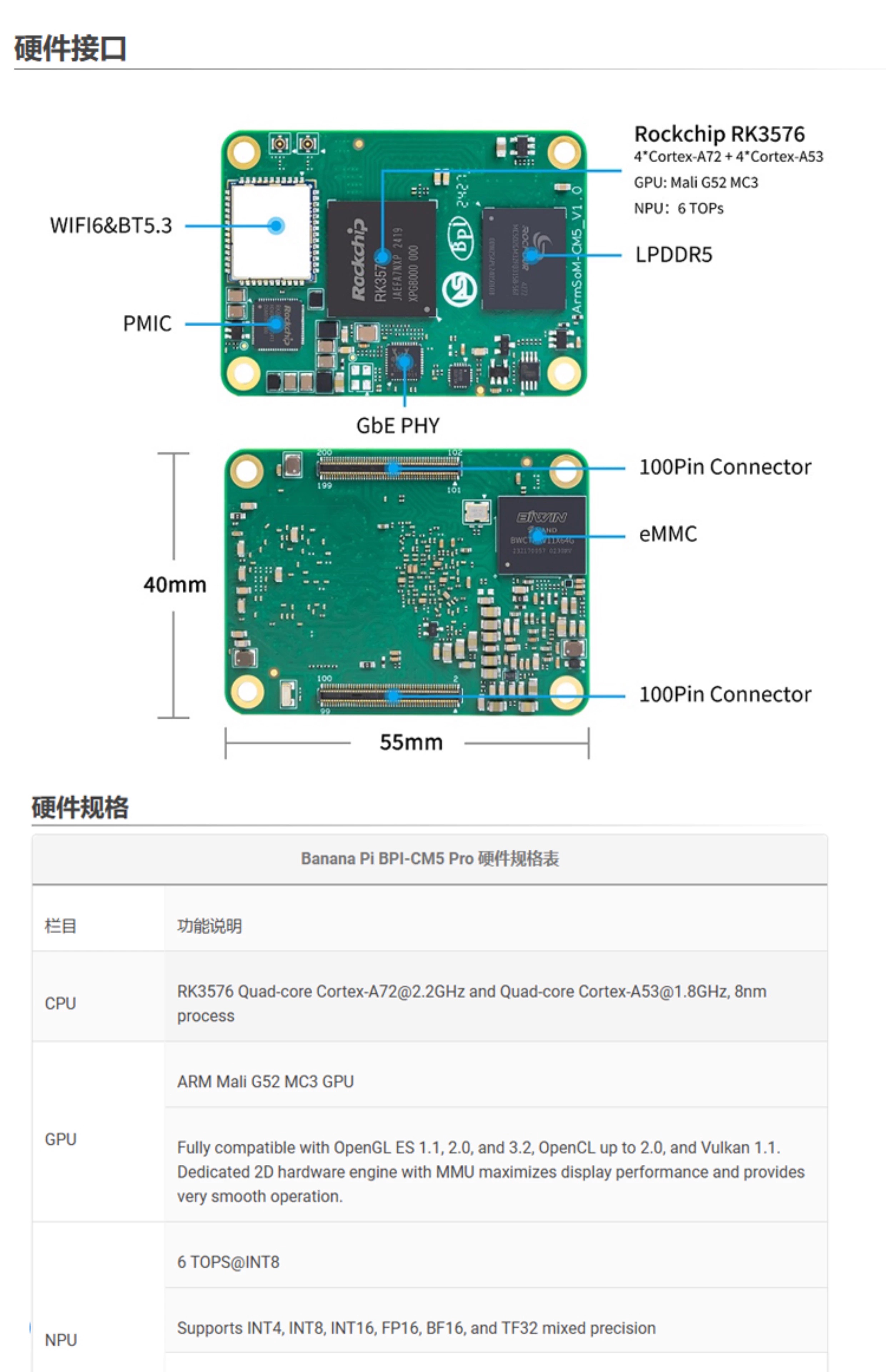

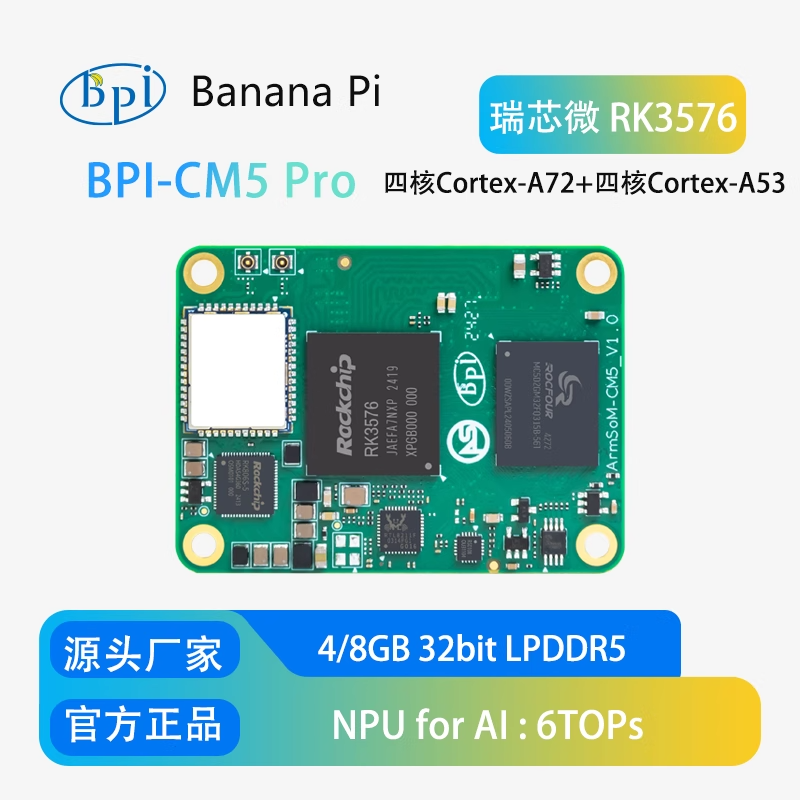

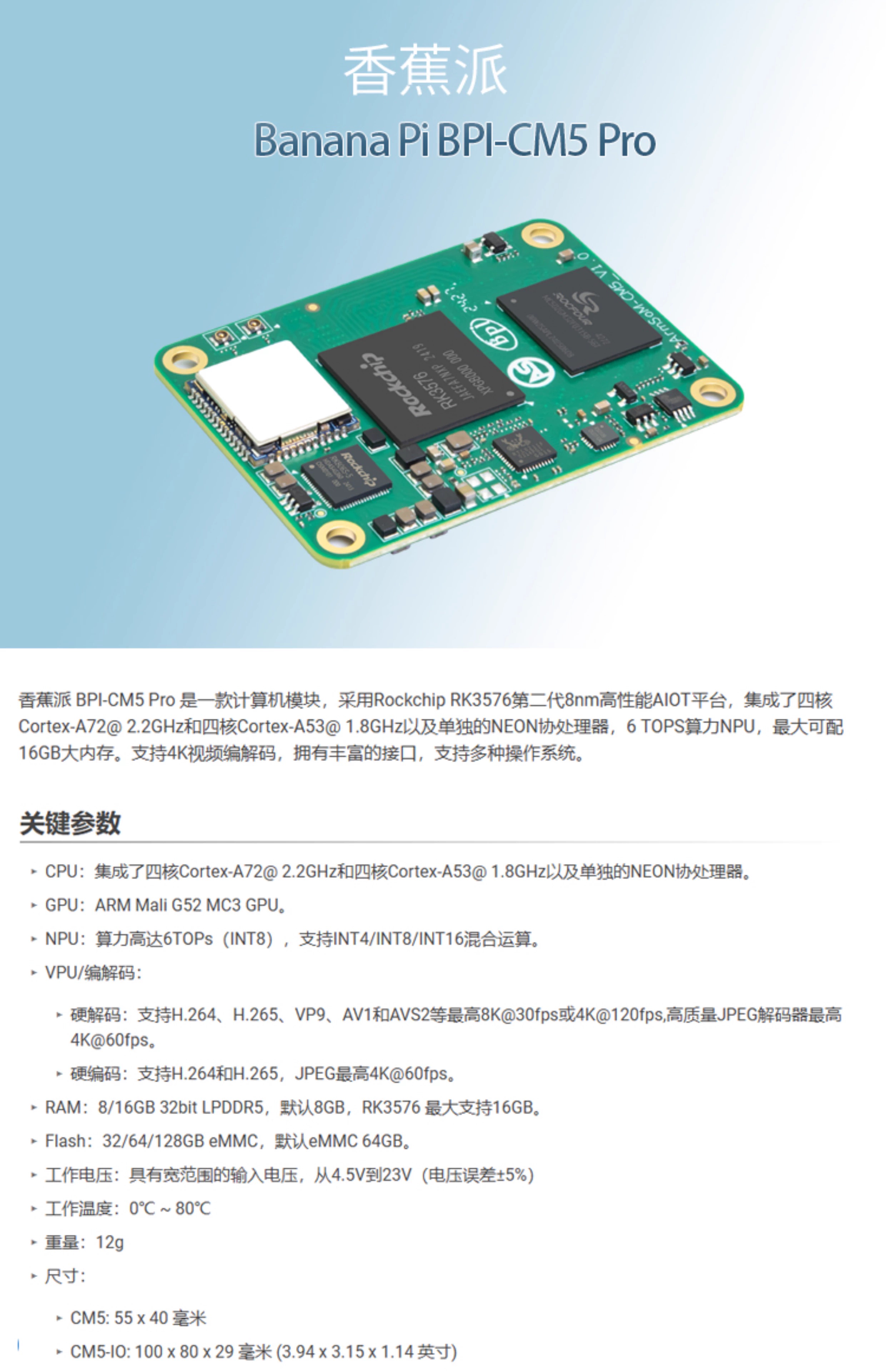

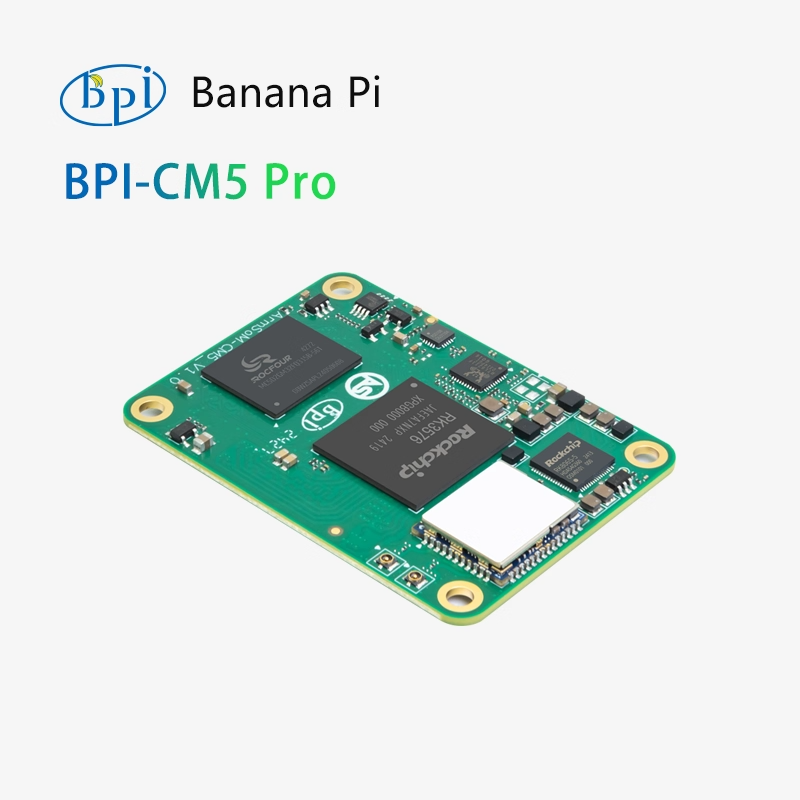

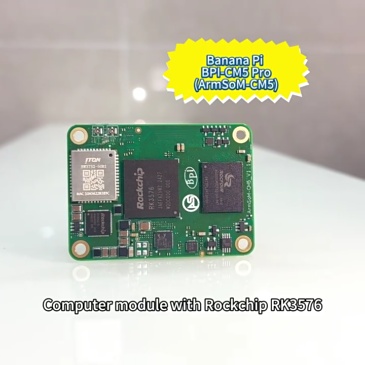

Banana Pi BPI-CM5 Pro is a computing module powered by the Rockchip RK3576 second-generation 8nm high-performance AIOT platform. It integrates a quad-core Cortex-A72 @ 2.2GHz and a quad-core Cortex-A53 @ 1.8GHz, along with a dedicated NEON co-processor, a 6 TOPS NPU, and supports up to 16GB of large memory. It supports 4K video encoding and decoding, features a rich set of interfaces, and supports various operating systems.

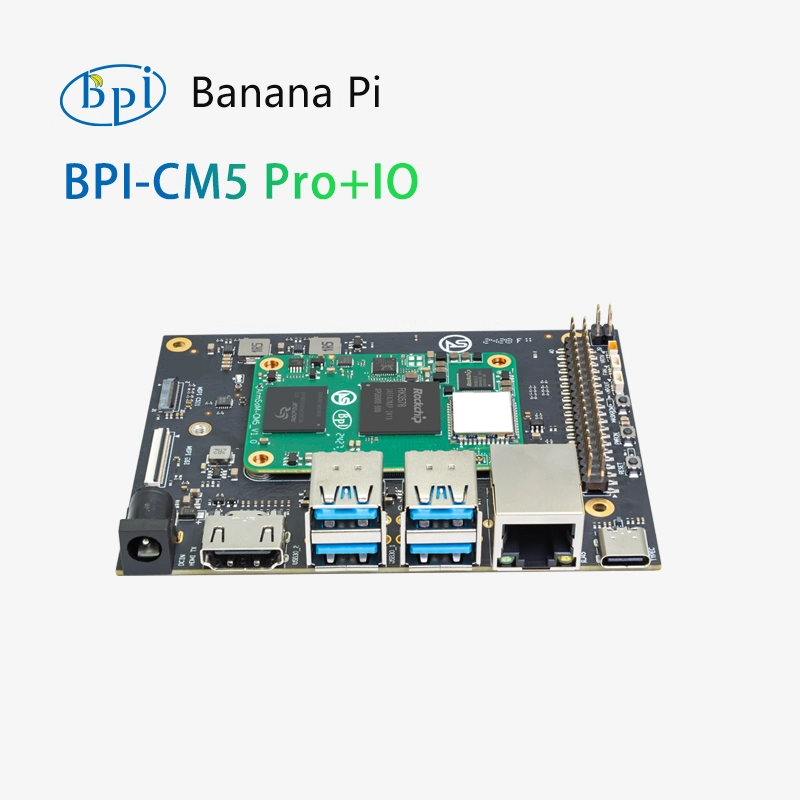

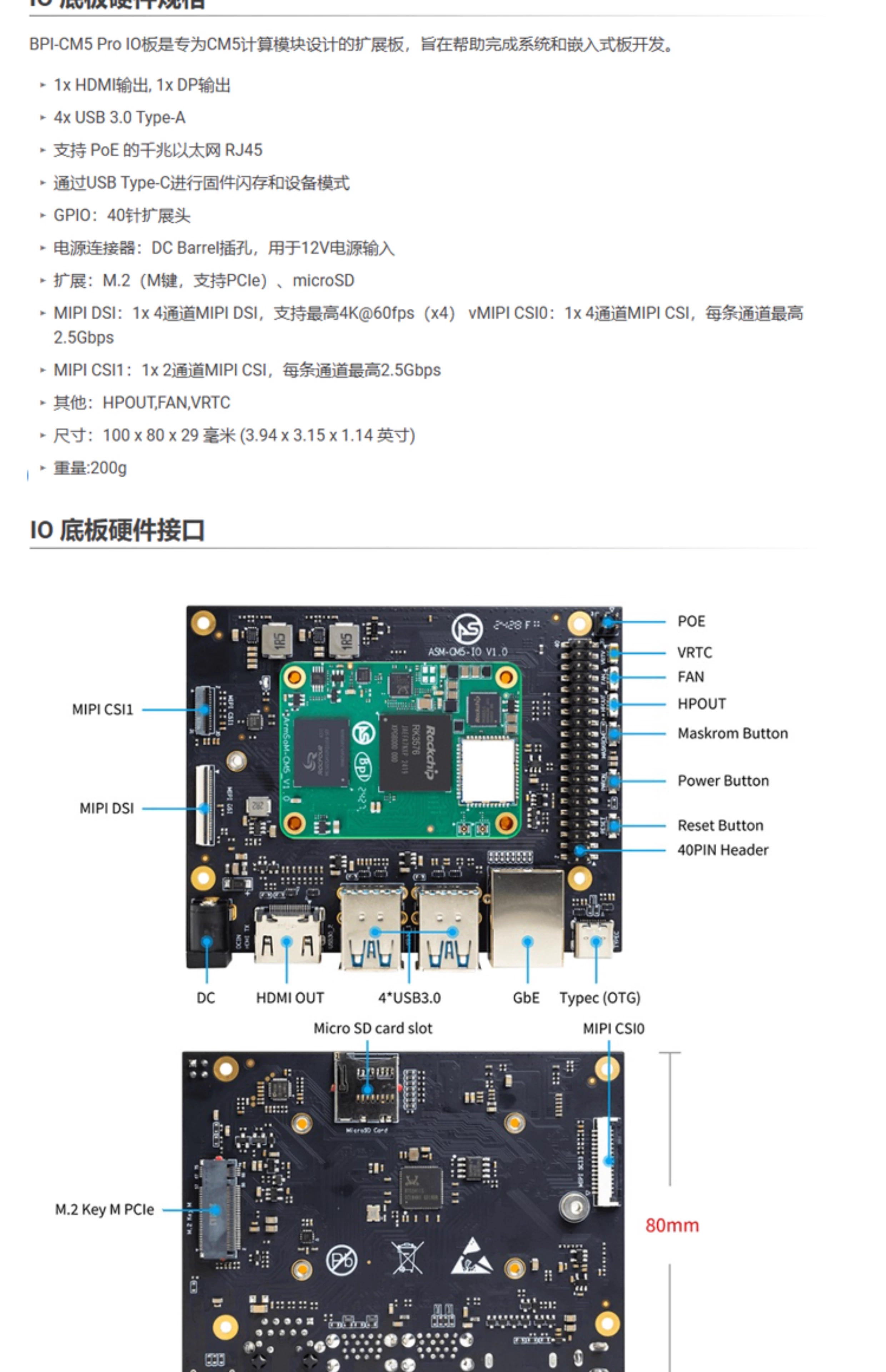

BPI-CM5 Pro IO board
The BPI-CM5 Pro-io board is an expansion board specifically designed for the CM5 Pro computing module, aimed at assisting in system and embedded board development.

1x HDMI output, 1x DP output

4x USB 3.0 Type-A

Gigabit Ethernet RJ45 with PoE support

Firmware flashing and device mode via USB Type-C

GPIO: 40-pin header • Power connector: DC Barrel jack for 12V power input

Expansion: M.2 (M-key, supports PCIe), microSD

MIPI DSI: 1x 4-lane MIPI DSI, supports up to 4K@60fps (x4)

MIPI CSI0: 1x 4-lane MIPI CSI, each lane up to 2.5Gbps

MIPI CSI1: 1x 2-lane MIPI CSI, each lane up to 2.5Gbps

Others: HPOUT, FAN, VRTC

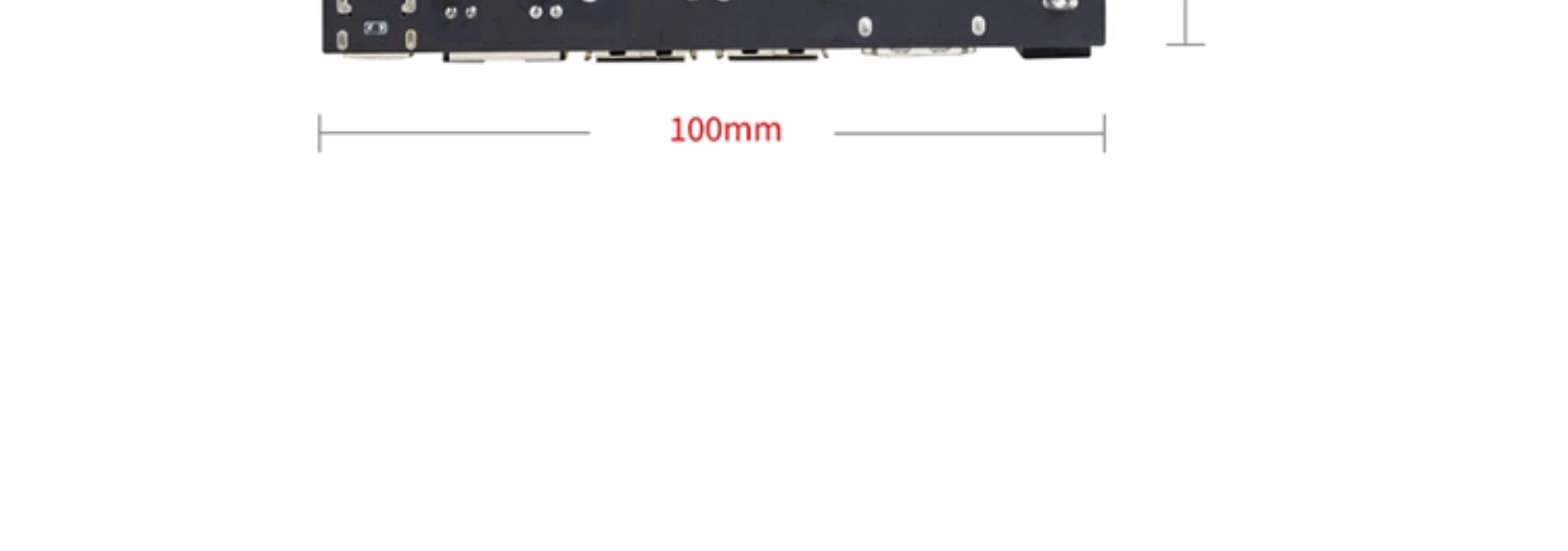

Dimensions: 100 x 80 x 29 mm (3.94 x 3.15 x 1.14 inches)

Weight: 200g
