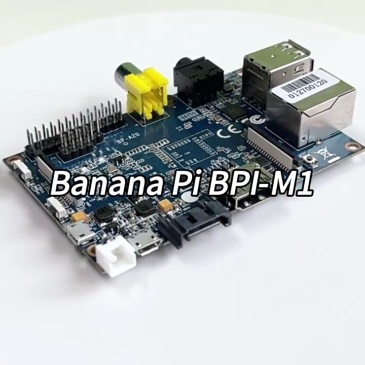

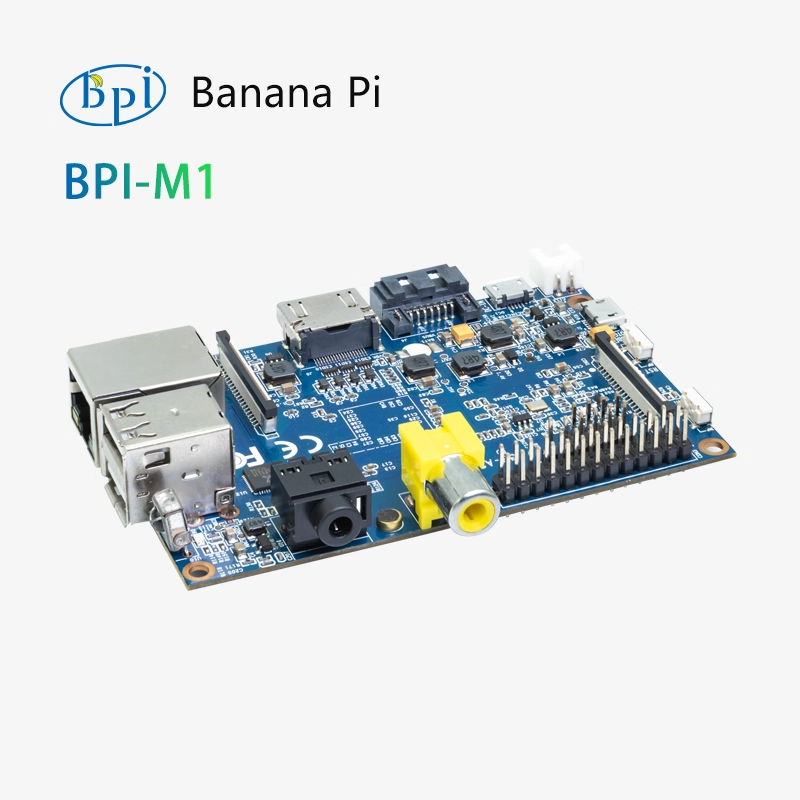

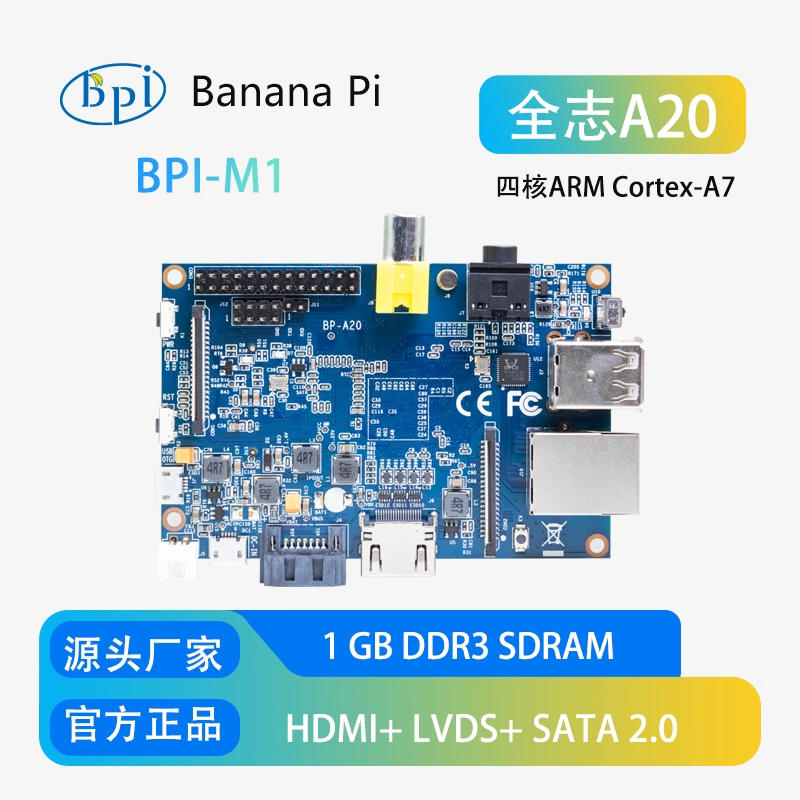

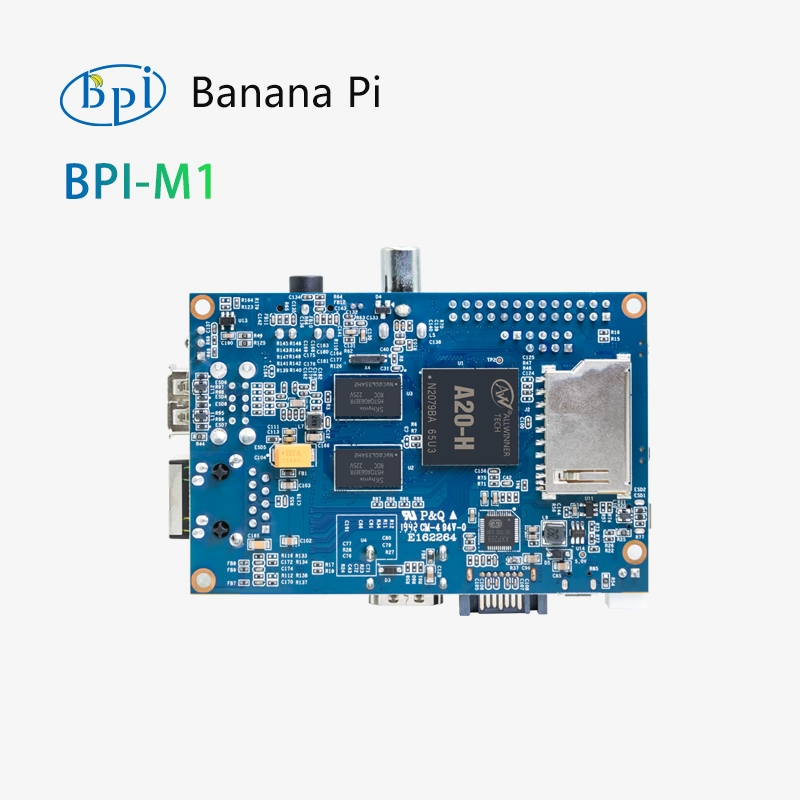

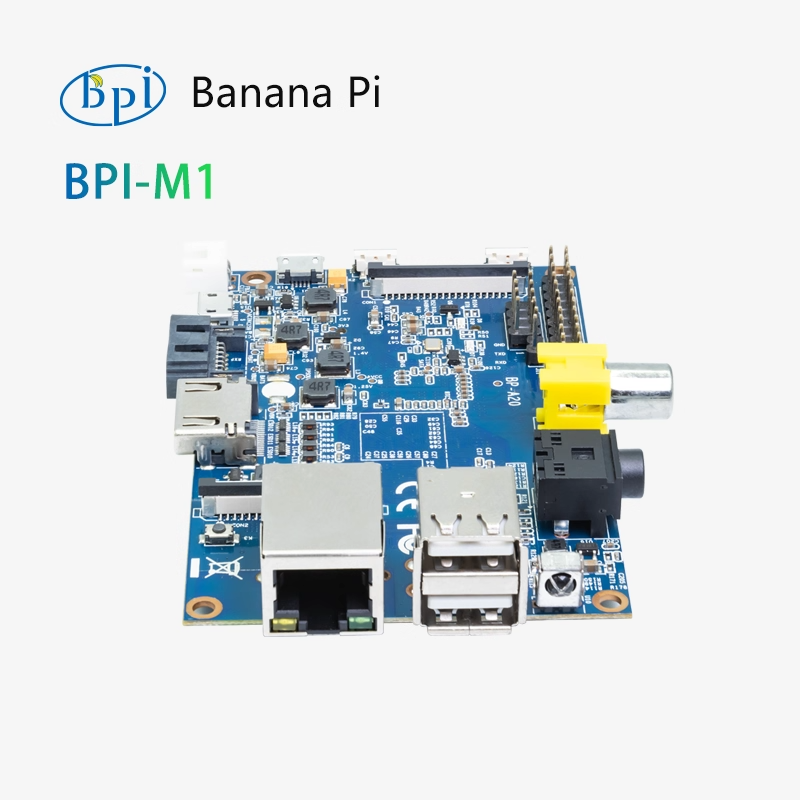

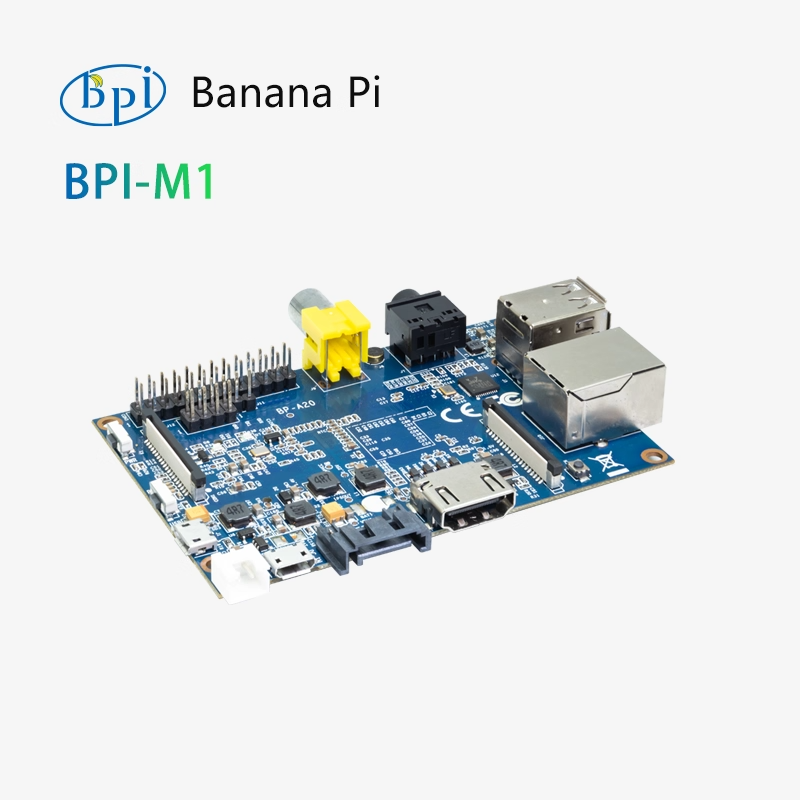

Banana Pi BPI-M1 Allwinner A20 open-source hardware Development board ARM single-board computer
SKU: BPI-M1
(0)
0 Sold
$30.00
$35.00

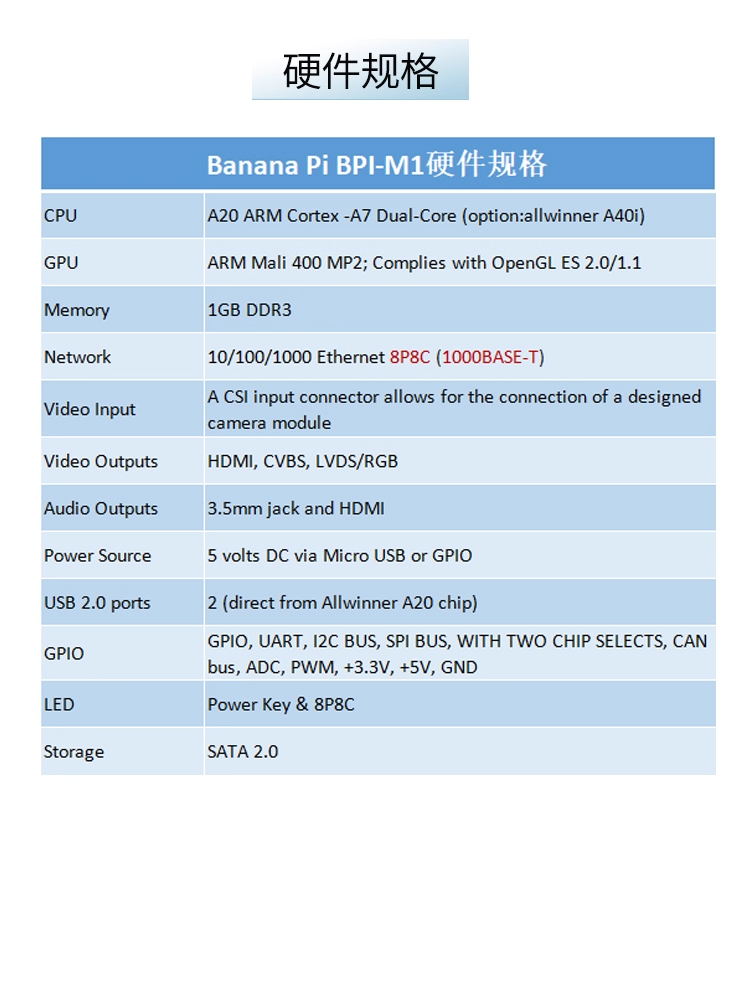

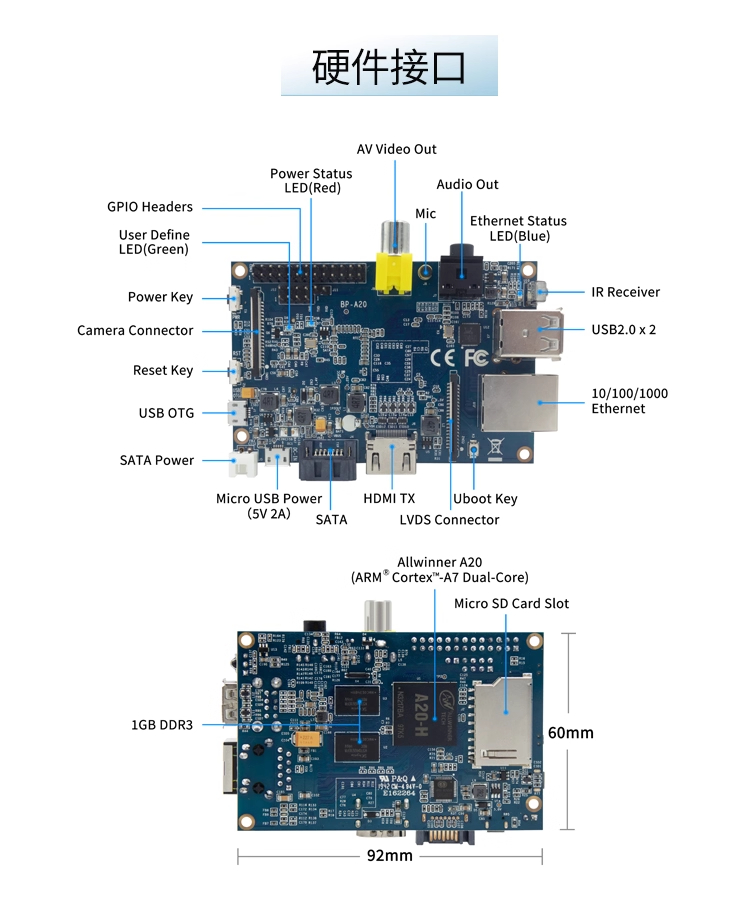

| Banana Pi BPI-M1硬件规格 | |||
| CPU | A20 ARM Cortex -A7 Dual-Core (option:allwinner A40i) | ||
| GPU | ARM Mali 400 MP2; Complies with OpenGL ES 2.0/1.1 | ||
| Memory | 1GB DDR3 | ||
| Network | 10/100/1000 Ethernet 8P8C (1000BASE-T) | ||
| Video Input | A CSI input connector allows for the connection of a designed camera module | ||
| Video Outputs | HDMI, CVBS, LVDS/RGB | ||
| Audio Outputs | 3.5mm jack and HDMI | ||
| Power Source | 5 volts DC via Micro USB or GPIO | ||
| USB 2.0 ports | 2 (direct from Allwinner A20 chip) | ||
| GPIO | GPIO, UART, I2C BUS, SPI BUS, WITH TWO CHIP SELECTS, CAN bus, ADC, PWM, +3.3V, +5V, GND | ||
| LED | Power Key & 8P8C | ||
| Storage | SATA 2.0, | ||
