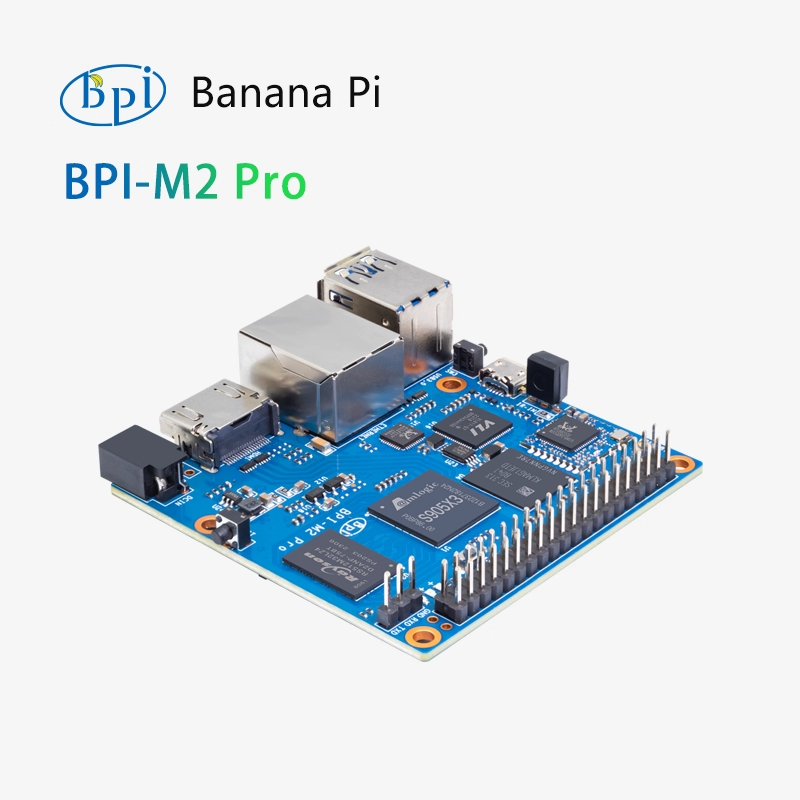

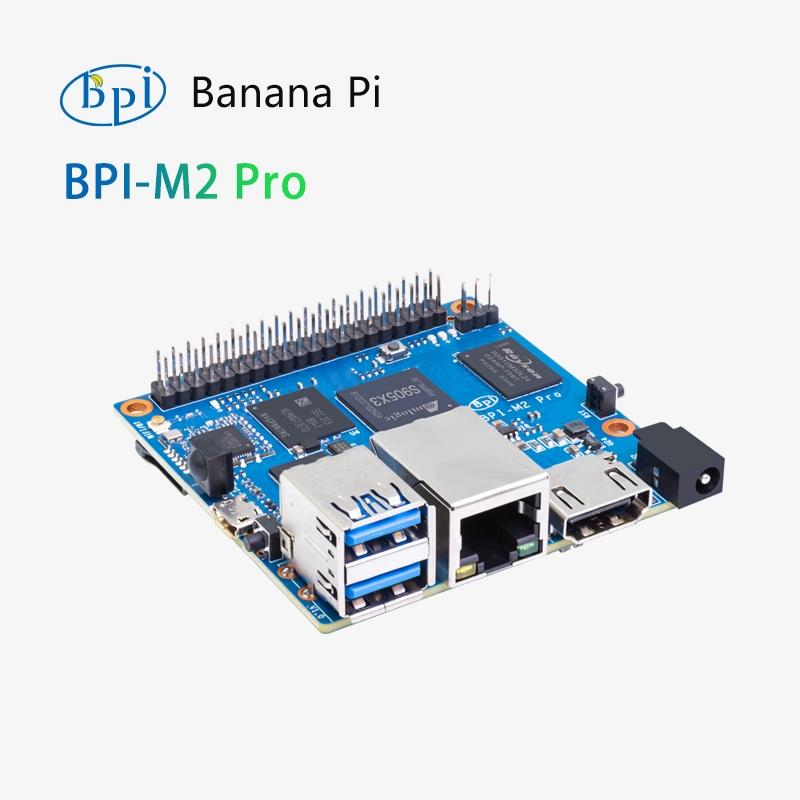

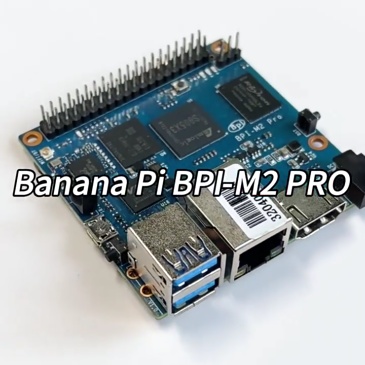

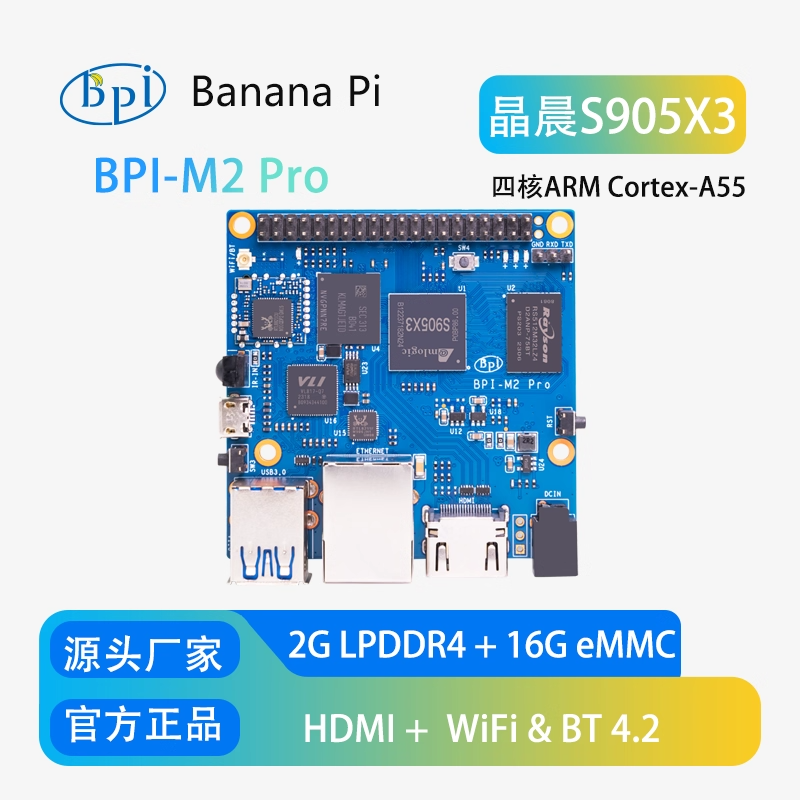

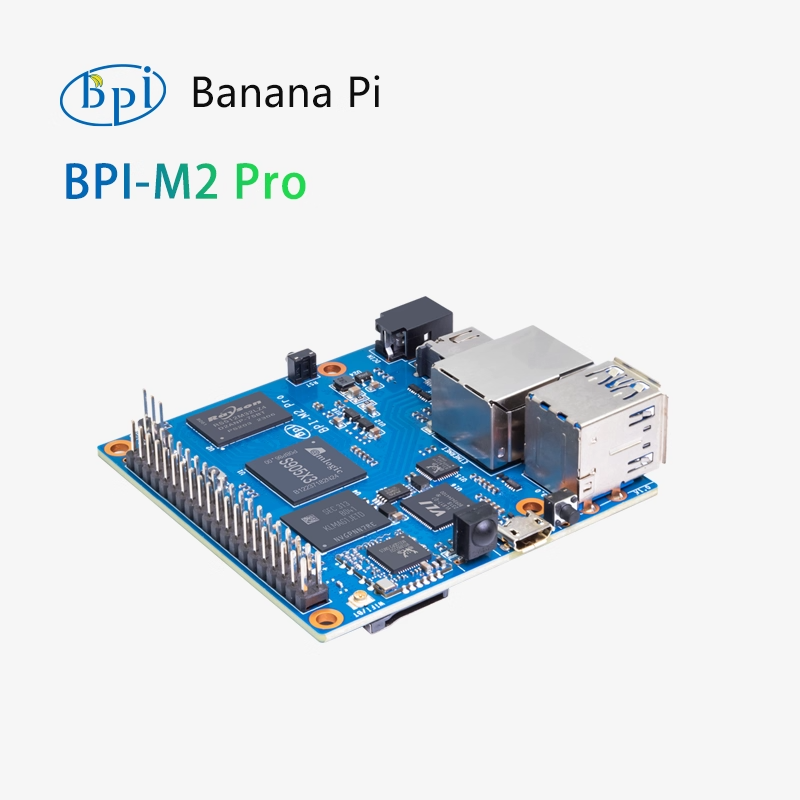

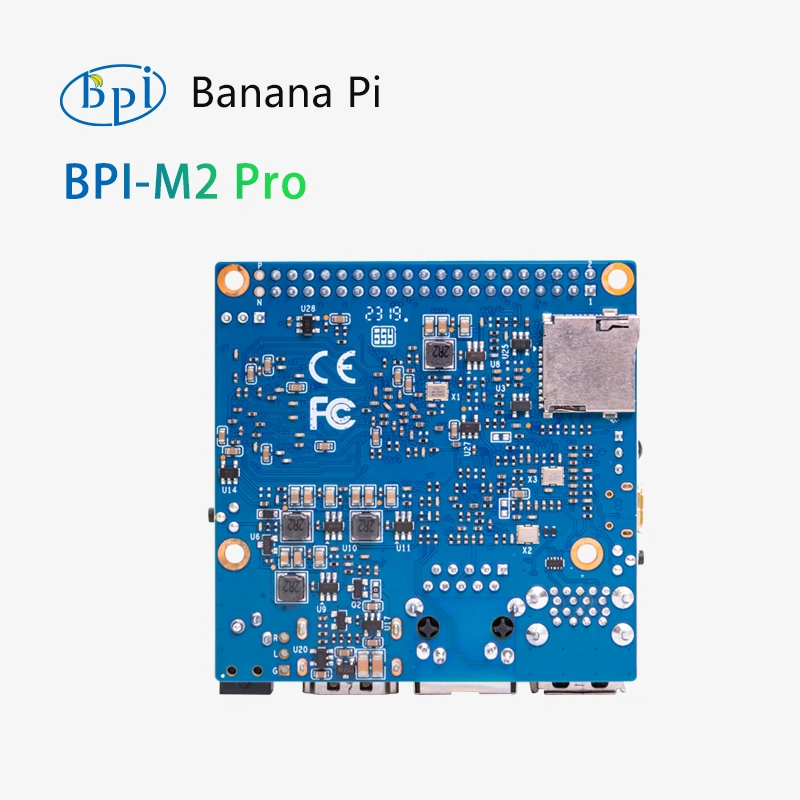

Banana Pi BPI-M2 Pro is the next generation single board computer from Banana Pi in 2021. It is powered by Amlogic S905X3 quad-core Cortex-A55 (2.0 XXGHz) processor.Onboard 2GB LPDDR4 memory and 16GB EMMC storage, and supports 2 USB 3.0 interface, a gigabit network port. RT8821CU wifi&BT onboard. 1 HDMI output

BPI-M2 Pro same size as Banana Pi BPI-M2+ , and interface is also same .so can use BPI-M2+ case.

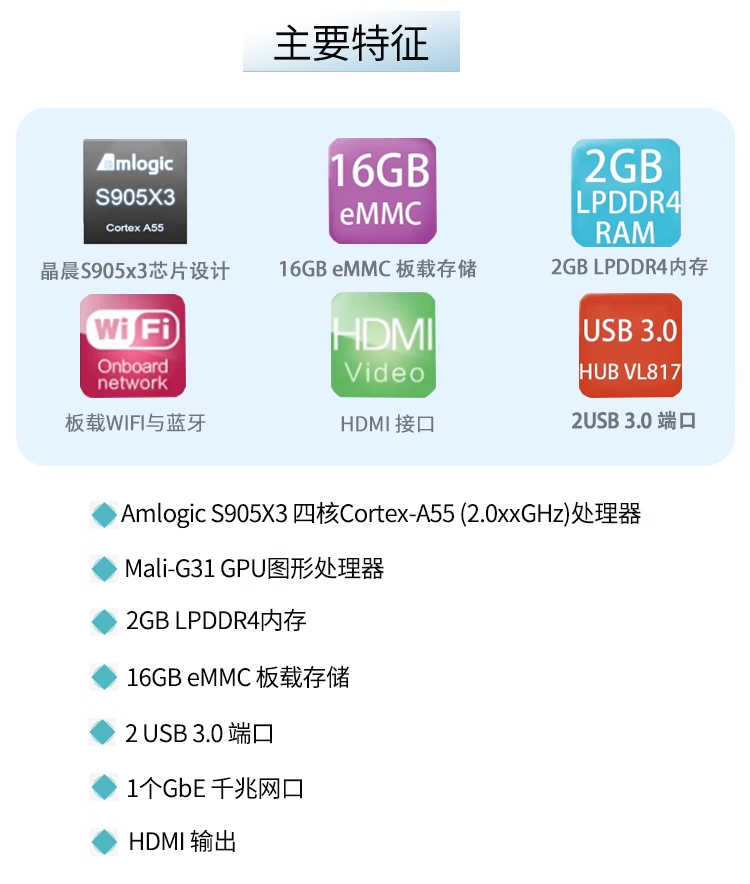

Key Features

• Amlogic S905X3 quad core Cortex-A55 (2.0xxGHz)
• Mali-G31 GPU
• 2GB LPDDR4
• 16GB eMMC flash
• 2 USB 3.0
• RTL8821CU WiFi&BT 4.2 onboard
• 1 GbE ethernet
• HDMI output

Getting Start

• Getting Started with M5/M2Pro

• Hardware spec

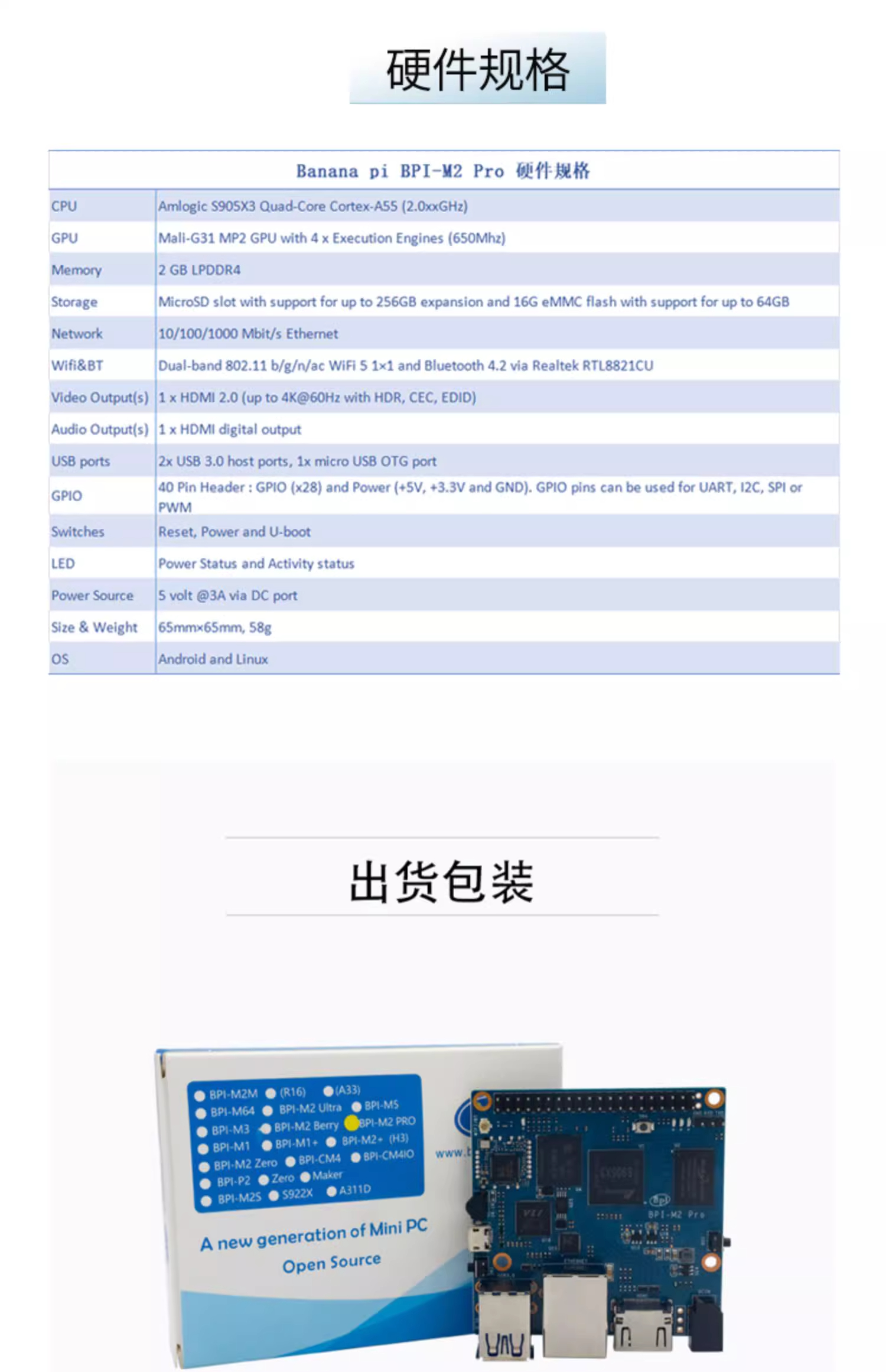

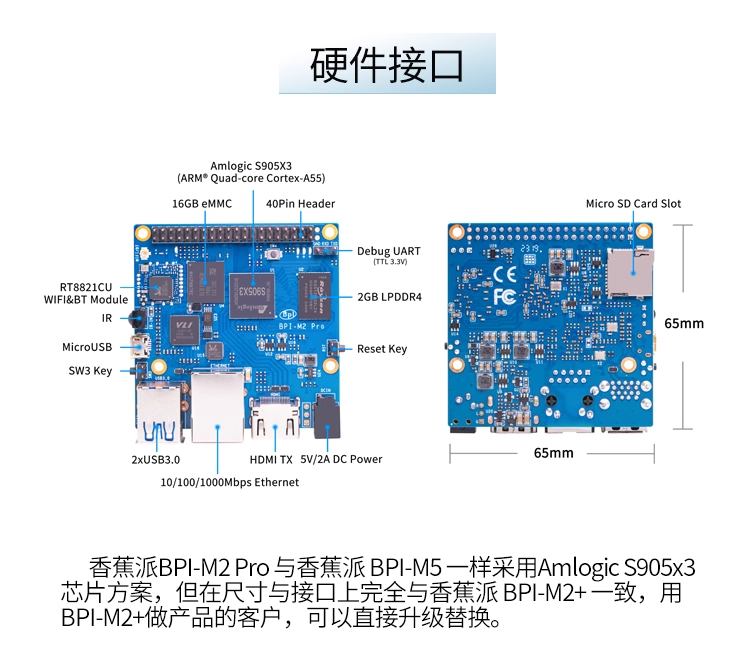

  HardWare Specification of Banana pi BPI-M2 Pro
  CPU	Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz)
  GPU	Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
  Memory	2 GB LPDDR4
  Storage	MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
  Network	10/100/1000 Mbit/s Ethernet
  Wifi&BT	Dual-band 802.11 b/g/n/ac WiFi 5 1×1 and Bluetooth 4.2 via Realtek RTL8821CU
  Video Output(s)	1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)
  Audio Output(s)	1 x HDMI digital output
  USB ports	2x USB 3.0 host ports, 1x micro USB OTG port
  GPIO	40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
  Switches	Reset, Power and U-boot
  LED	Power Status and Activity status
  Power Source	5 volt @3A / 5 volt @2A via DC port
  Size & Weight	65mm×65mm, 58g
  OS	Android and Linux
