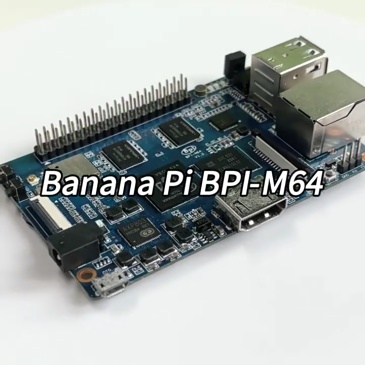

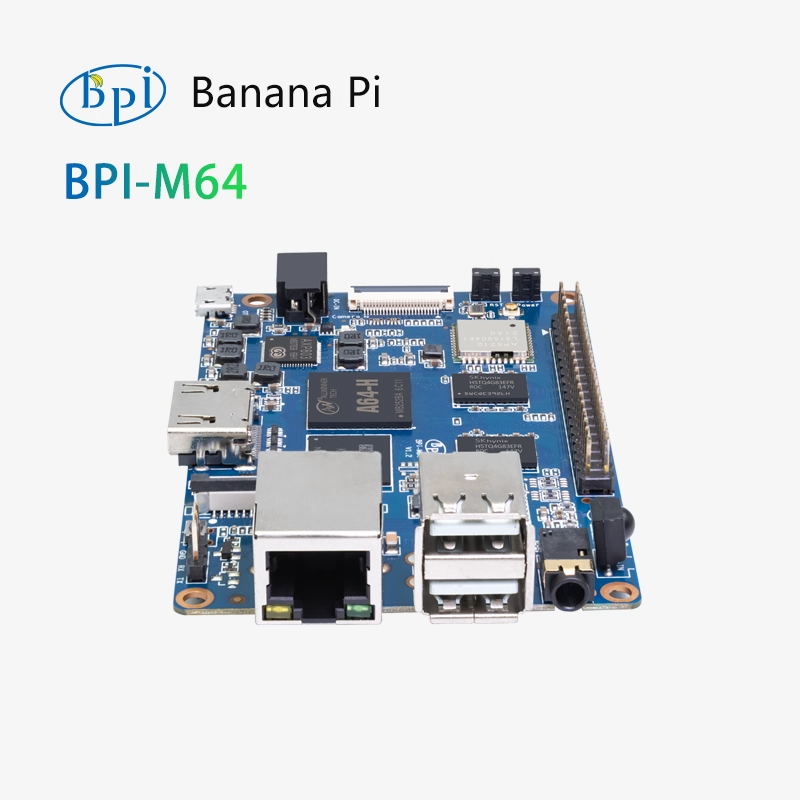

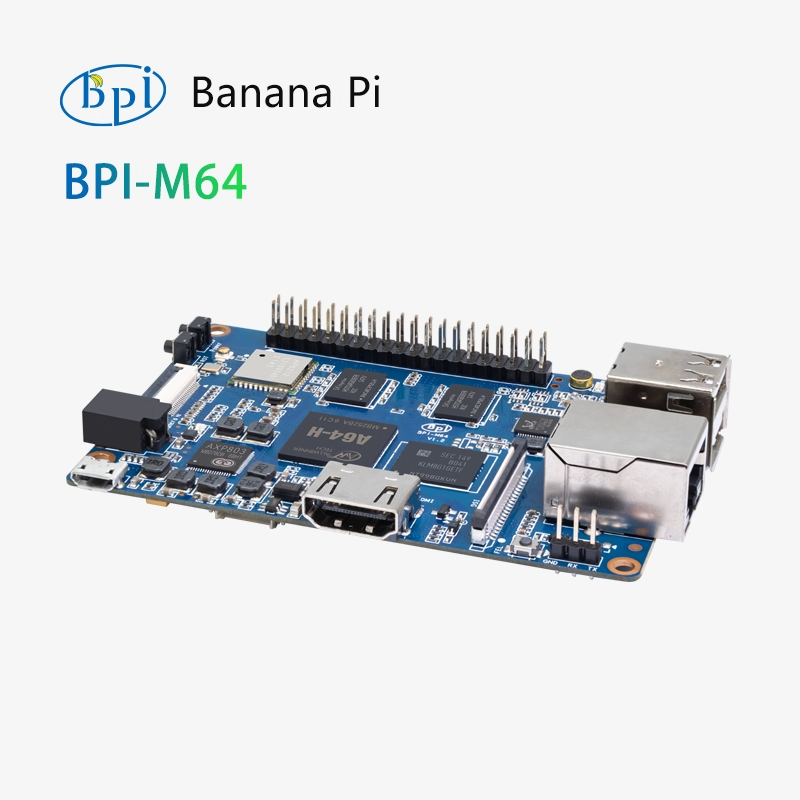

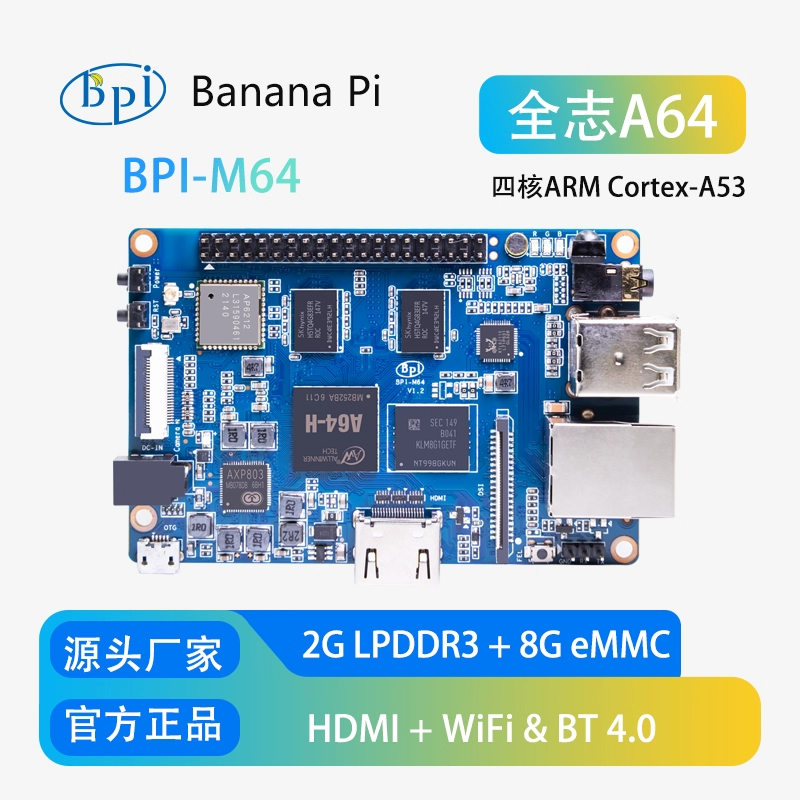

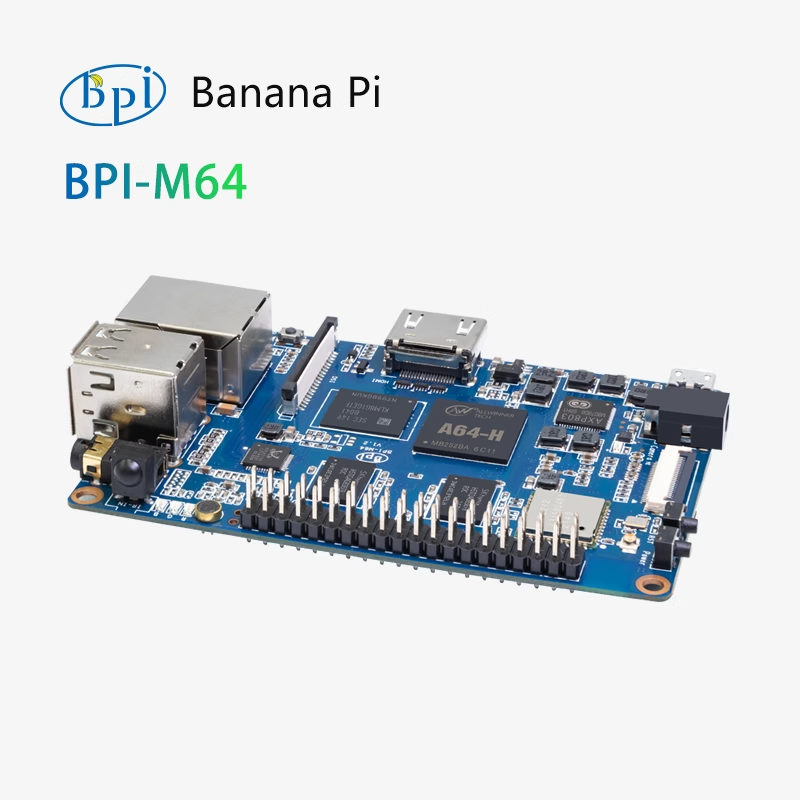

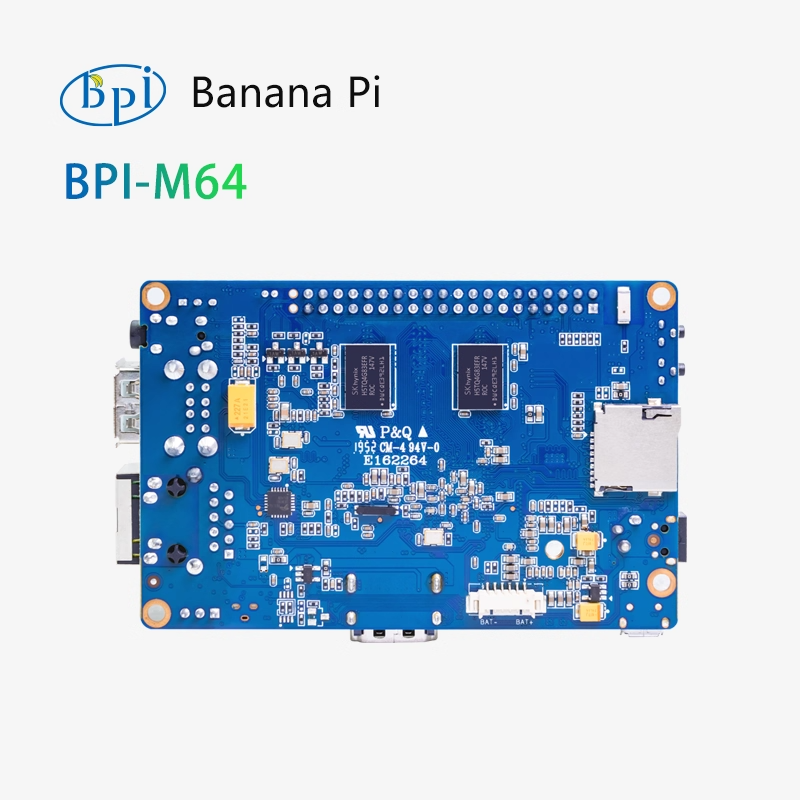

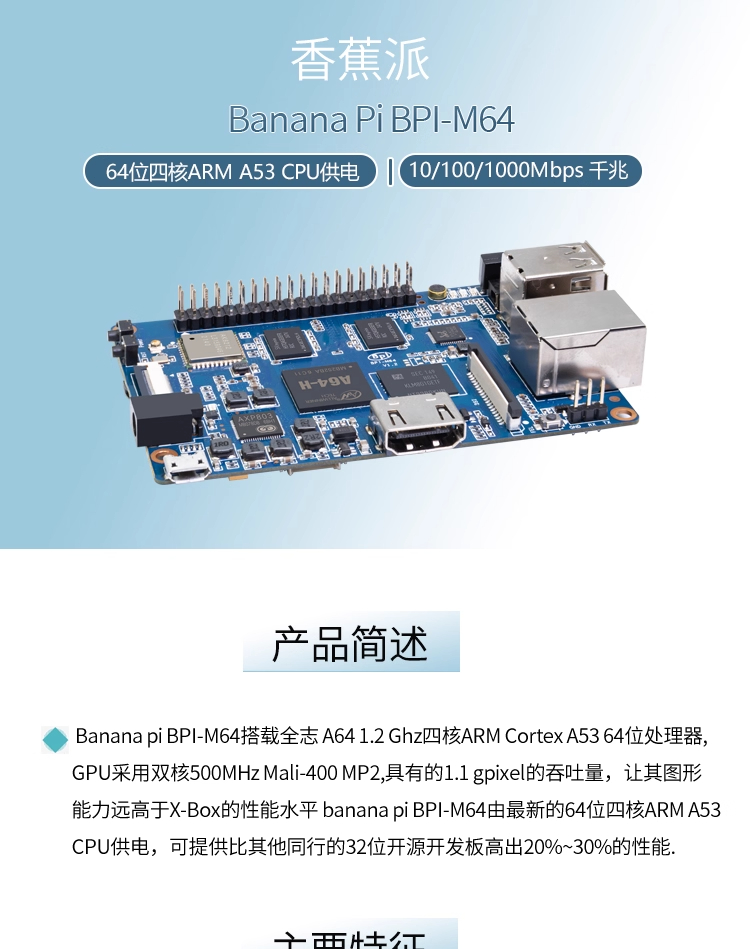

Banana Pi BPI-M64 Allwinner A64 open-source hardware Development board ARM single-board computer
SKU: BPI-M64
(0)
0 Sold
$44.00
$46.00

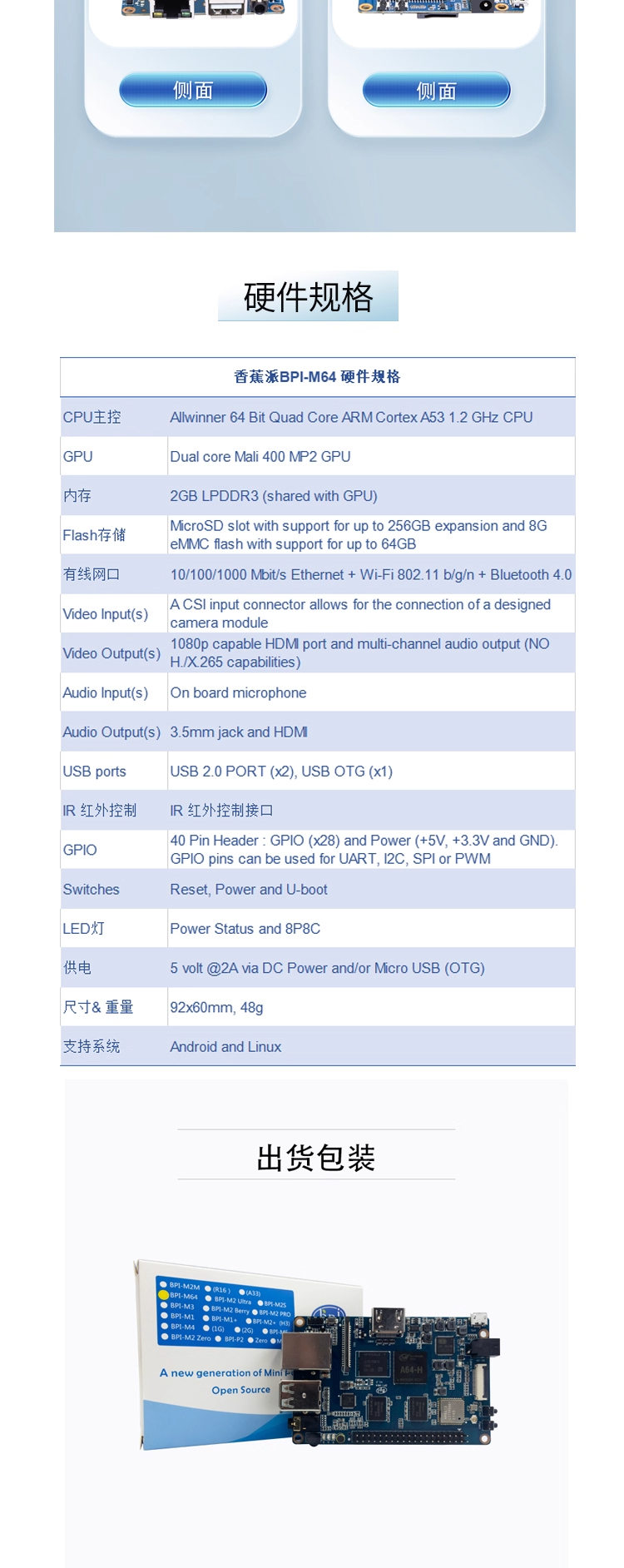

| 香蕉派BPI-M64 硬件规格 | |||
| CPU主控 | Allwinner 64 Bit Quad Core ARM Cortex A53 1.2 GHz CPU | ||
| GPU | Dual core Mali 400 MP2 GPU | ||
| 内存 | 2GB LPDDR3 (shared with GPU) | ||
| Flash存储 | MicroSD slot with support for up to 256GB expansion and 8G eMMC flash with support for up to 64GB | ||
| 有线网口 | 10/100/1000 Mbit/s Ethernet + Wi-Fi 802.11 b/g/n + BT4.0 | ||
| Video Input(s) | A CSI input connector allows for the connection of a designed camera module | ||
| Video Output(s) | 1080p capable HDMI port and multi-channel audio output (NO H./X.265 capabilities) | ||
| Audio Input(s) | On board microphone | ||
| Audio Output(s) | 3.5mm jack and HDMI | ||
| USB ports | USB 2.0 PORT (x2), USB OTG (x1) | ||
| IR 红外控制 | IR 红外控制接口 | ||
| GPIO | 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM | ||
| Switches | Reset, Power and U-boot | ||
| LED灯 | Power Status and 8P8C | ||
| 供电 | 5 volt @2A via DC Power and/or Micro USB (OTG) | ||

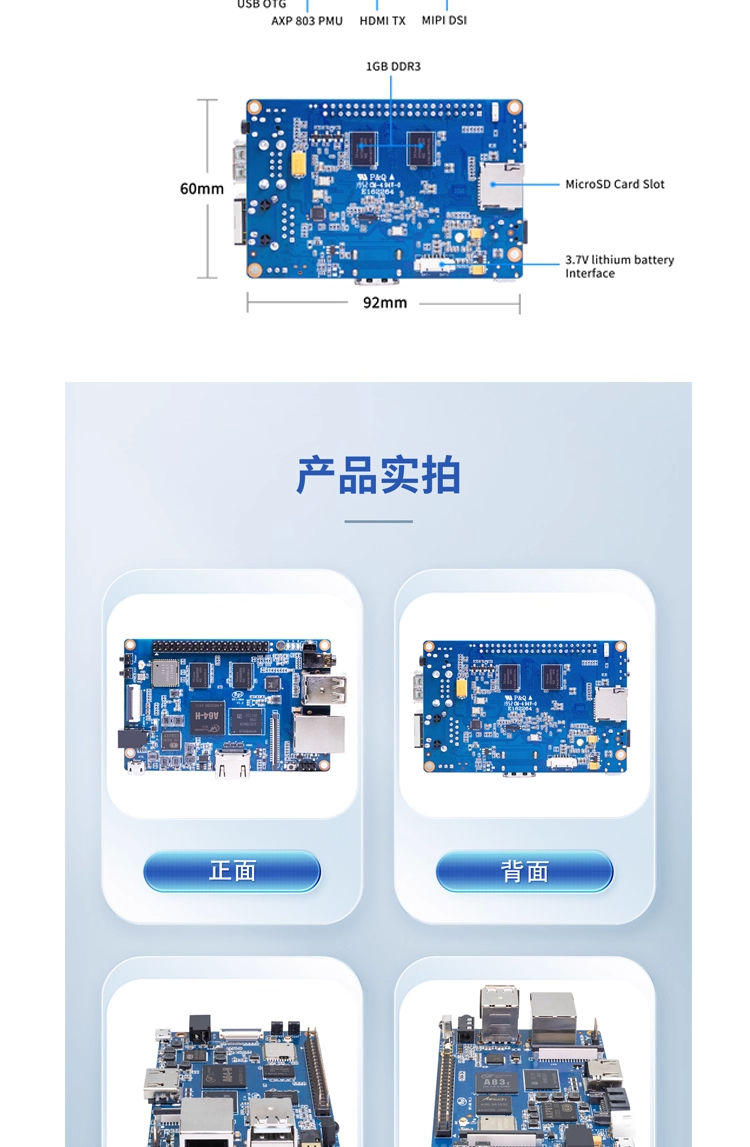

| 尺寸& 重量 | 92x60mm, 48g | ||
| 支持系统 | Android and Linux | ||
